ROS官方硬件开启快速转发
目 录
支持的硬件：
| RB6xx series | ether1,2 |
| RB7xx series | all ports |
| RB800 | ether1,2 |
| RB9xx series | all ports |
| RB1000 | all ports |
| RB1100, RB1000AHx2 | ether1-11 |
| RB1000AHx2 | all ports |

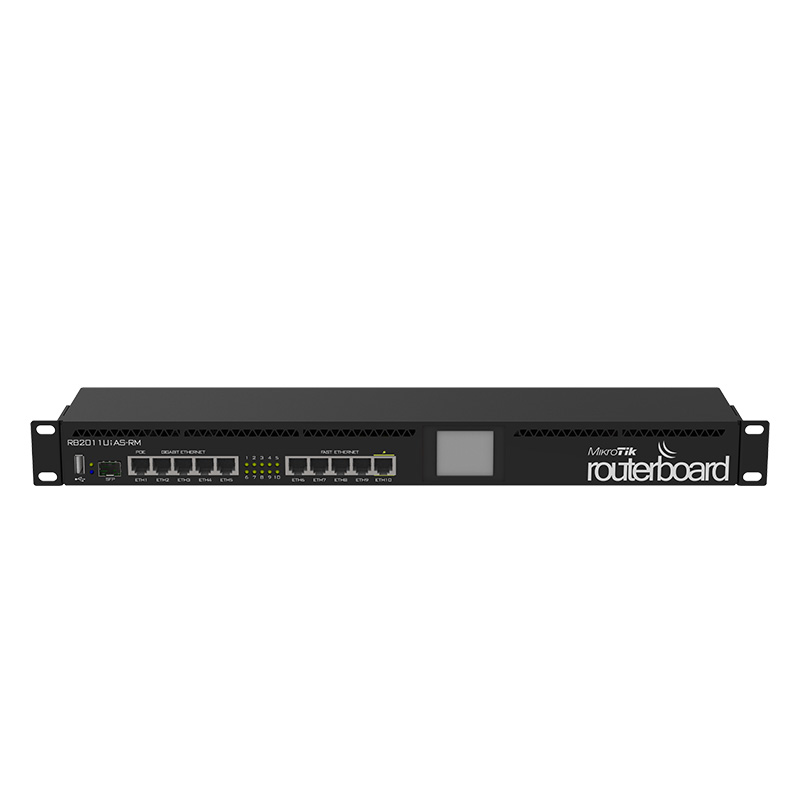

| RB2011 series | all ports |
| RB3011 series | all ports |
| RB4011 series | all ports |
| CRS series routers | all ports except management interface (if the device has one) |
| CCR series routers | all ports except management interface (if the device has one) |
| All devices | wireless interfaces, if wireless-fp, wireless-cm2, wireless-rep or wireless (starting from 6.37) package used |
命令如下：
/ip firewall filter add chain=forward action=fasttrack-connection connection-state=established,related /ip firewall filter add chain=forward action=accept connection-state=established,related
加上这条据说可以让Mangle策略生效
/ip firewall filter add action=fasttrack-connection chain=forward comment="defconf: fasttrack" connection-state=established,related hw-offload=yes in-interface=PPPoE-Unicom
注：PPPoE-Unicom是拨号接口
从RouterOS v7.1beta6开始CRS3xx系列几乎全部支持支持Layer3 hardware offloading
/ip firewall filter set 1 hw-offload=yes

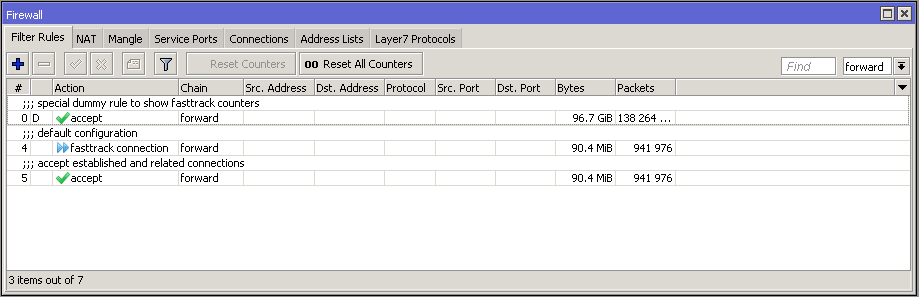

查看防火墙：
注：

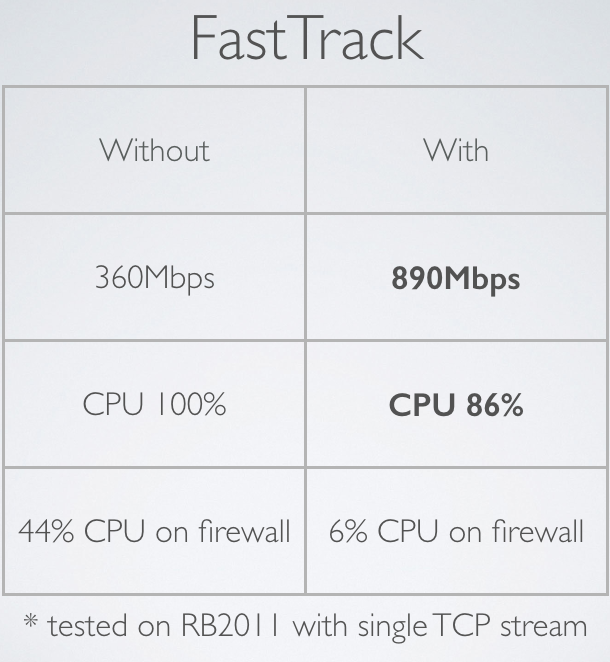

优点 降低了 CPU的 负荷
缺点 mangle 和queue 都会失效
hw-offload：参考
